| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | CB SAA ENEC SABER CE RoHS |
| Model Number: | SL-GL120WRPS-S |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | 1-100US$/unit |
| Packaging Details: | 1 unit/carton |
| Delivery Time: | 16-22 working days |
| Payment Terms: | T/T, L/C at sight, Western Union, Paypal |
| Supply Ability: | 800pcs per working day |
| Power: | 120W | Input Voltage: | AC100-277V |
|---|---|---|---|
| Chips: | Lumileds LUXEON 3030 | Driver: | Moso / Sosen / Mean Well |
| IP Rating: | IP66 | IK Rating: | IK08 |
| Warranty: | 5 Years | Dimming: | 0-10V/Dali |
| Highlight: | LED tube with motion sensor,4ft LED tube light |
||

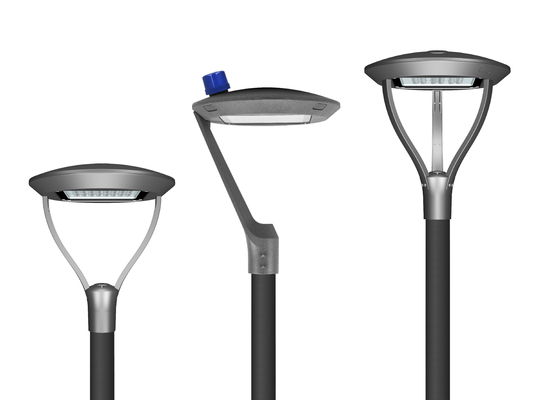

CB SAA ENEC SABER CE RoHS Approved 120W CROWN series Urban LED Street Garden Light Datasheet
| Product Code | SL-GL030WRPS-S | SL-GL040WRPS-S | SL-GL050WRPS-S | SL-GL060WRPS-S | SL-GL080WRPS-S | SL-GL100WRPS-S | SL-GL120WRPS-S | SL-GL150WRPS-S | SL-GL180WRPS-S | SL-GL200WRPS-S |
| Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W |
| Luminous Efficacy | 150lm/W | |||||||||
| Input Voltage | AC100-277V | |||||||||
| Chip Brand | LM80 approved Lumileds LUXEON 3030/ Epistar 3030 | |||||||||
| Driver Brand | MOSO/SOSEN/MEAN WELL | |||||||||
| Surge Protection | Support built-in 10Kv/20Kv SPD | |||||||||
| CRI | >70Ra | |||||||||
| CCT | 2700K-6500K | |||||||||
| PF | >0.95 | |||||||||
| Beam Angle |
Type II (S/M/L), Type III (S/M/L), 60°, 90°, 120° |
|||||||||
| Material | ADC12, anti UV IK10 optical PC lens | |||||||||
| Life Span | ≧108,000 hours | |||||||||
| IP Grade | IP66 | |||||||||
| Operating Tem. | -40~50℃ | |||||||||
| THD | <20% | |||||||||
Product Features 30W-150W URBAN LIGHTING CROWN LED STREET GARDEN LIGHT
* Smart design, easy to install.
* Excellent heat dissipation design, sleek appearance design to decrease the dust falling on the fixture, ADC12 heat sink to guarantee the perfect heat dissipation.
* 3 pin, 5 pin, 7 pin NEMA socket with photocell sensor, photocell sensor working principle: 6LX (sun set/dark) turn on and 50LX (sun rise) turn off automatically, the level could be adjusted according to customers’ requirement, the lamps operate depends on the ambient luminance, the lamps will lighten with a suitable illumination automatically when it is dark.
* 5 pin and 7 pin NEMA socket to extend for the 0-10V dimming or DALI control
DALI control. Luminaries can be controlled by a computer.
1-10V dimming. Luminance can be divided into 10 level, set it upon your specific requirements.
* Anti UV IK10 optical PC lenses
Anti UV PC optical lens with high light transmittance and secondary light dissipation technology, available with 60°, 90°, 120°, 130°beam angle
* High efficiency LM80 approved SMD3030 LED, system lumens output 130lm/W at least.
* No light pollution for residential areas.
* Support built-in 10Kv/20Kv SPD (surge protection device).
