| Place of Origin: | China |
| Brand Name: | SURPLUS LIGHTING |
| Certification: | TUV CB CE SAA INMETRO |
| Model Number: | SPL-SL200WPM |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | 1-100US$/unit |
| Packaging Details: | 1 unit/carton |
| Delivery Time: | 15-18 working days |
| Payment Terms: | T/T, L/C at sight, Western Union, Paypal |
| Supply Ability: | 3000pcs per working day |
| Item Type: | Aquarius LED Street Light | Luminous Efficacy: | 150LM/W |
|---|---|---|---|
| Chip Brand: | Lumileds LUXEON 3030 | Driver Brand: | Mean Well |
| Input Voltage: | AC100-277V | CCT: | 2700K-6500K |
| Power Range: | 30W/50W/60W/80W/100W/120W/150W/200W | Application: | Parking Lots And Street |
| Working Temperature: | -40~+50°C | Main Material: | ADC12, Tempered Glass |
| Highlight: | emergency led tube,LED tube t8 |
||

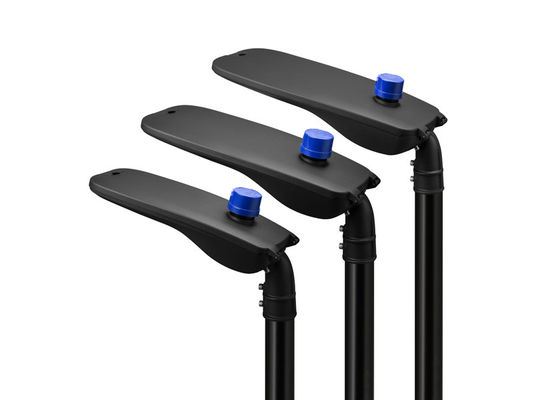

IP66 IK08 150LM/W Aquarius LED Street Light 5 Years Warranty
Product Features of IP66 IK08 150LM/W 200W Aquarius LED Street Light 5 Years Warranty
· Made by die-casting aluminium process, with excellent heat dissipation and high performance
· Various LED Chips and LED drivers for options
· IP66, IK08, anti-corrosion, vibration test approved
· Easy for installation and maintenance, free-tool maintenance
· sleek design to decrease the dust falling on the housing/fixture
· Support 10KV or 20KV SPD (surge protection device)
· Quality finishing: electrostatic powder coating with anti-UV additive
· Power-off protection design automatically and immediately when the fixture opened.
· TUV CB CE approved, SAA approved, Inmetro approved.
Specification of IP66 IK08 150LM/W 200W Aquarius LED Street Light 5 Years Warranty
| Product Code | SPL-SL60WPM | SPL-SL80WPM | SPL-SL100WPM | SPL-SL120WPM | SPL-SL150WPM | SPL-SL180WPM | SPL-SL200WPM |
| Power | 60W | 80W | 100W | 120W | 150W | 180W | 200W |
| Luminous flux | 8400LM | 11200LM | 14000LM | 16800LM | 21000LM | 25200LM | 28000LM |
| Input Voltage | AC100-277V | ||||||
| LEDs | LM80 approved Lumileds LUXEON 3030 | ||||||
| Driver | Mean Well | ||||||
| Luminous Efficacy | 140-150LM/W | ||||||
| CRI | >70Ra | ||||||
| CCT | 2700K-6500K | ||||||
| PF | >0.95 | ||||||
| Beam Angle | TypeⅠ90°x155°, Type ⅡL 80°x145°, Type ⅡM 60°x145°, Type Ⅲ M 45°x157°, Type Ⅲ M 100°x160°,TypeⅤ 160° | ||||||
| Material | die-casting aluminium, UV test approved optical PC Lenses & tempered glass | ||||||
| Life Span | ≧50,000Hours | ||||||
| IP Grade | IP66 | ||||||
| Operating Tem. | -40~55℃ | ||||||
| THD | <20% | ||||||
Applications
Aquarius LED street light are widely used at main road, factories, schools, gardens, square, garden road lighting, etc.
